Electronic Reactive Space

Special thanks to Pinchas from Bezalel's workshop for all the patience, creativity and encouragement. You're the best.

WhatsApp Image 2021-07-06 at 3.47.10 PM.jpeg

Gramophone

Electronics


Many different variations were made to send to Pinchas for consulting.

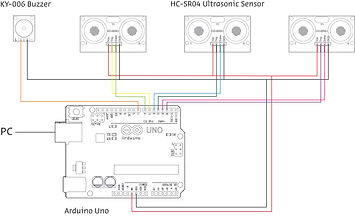

שרטוט אלקטורני.jpg

With the help of this setup.

CNC in Beit Hansen

WhatsApp Image 2021-07-01 at 18.42.48.jpeg
WhatsApp Image 2021-07-01 at 18.40.23.jpeg

Gramophone

WhatsApp Image 2021-07-01 at 18.39.23.jpeg

Soundbox


Robot in Bezalel
1st try

WhatsApp Image 2021-06-24 at 4.14.05 PM.jpeg

Email exchange with Pinchas

WhatsApp Image 2021-06-27 at 3.35.03 PM.jpeg
WhatsApp Image 2021-06-27 at 11.31.02 AM.jpeg
WhatsApp Image 2021-06-27 at 5.14.18 PM.jpeg
WhatsApp Image 2021-06-27 at 5.15.09 PM.jpeg

Arduino pseudocode:

# Define the pins for each sensor.
# Define the pin for the buzzer.
# Define the frequencies of the notes to be played by the buzzer.
# Define the distance range from the sensor.

Fetch distance from the first sensor.
If out of the defined range, skip to second sensor.
Else:
Go through the ranges, find in what range the distance falls.
Play the range's corresponding note on the buzzer.
Delay.

Move on to fetch distance from second sensor.
If out of the defined range, skip to third sensor.

Else:
Go through the ranges, find in what range the distance falls.Play the range's corresponding note on the buzzer.
Delay.

Move on to fetch distance from second sensor. If out of the defined range, loop back to first.

Else:
Go through the ranges, find in what range the distance falls.Play the range's corresponding note on the buzzer.
Delay.

Loop back to first sensor.

Experiments

Instructions

Song stickers and instructions.jpg
WhatsApp Image 2021-07-06 at 4.20.46 PM.jpeg

Presentation

The MDF wasn't strong enough to drill through

Robot in Bezalel
2st try.
This time with an eucalyptus trunk

WhatsApp Image 2021-06-30 at 1.21.56 PM.jpeg

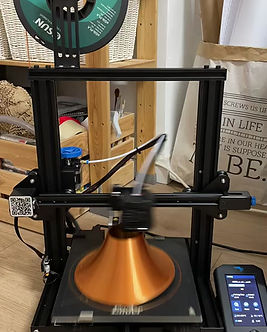

3D printing

print horn.jpg
WhatsApp Image 2021-06-30 at 1.21.50 PM.jpeg
WhatsApp Image 2021-07-06 at 2.17.14 AM.jpeg

OH MY GOD
it actually worked.


Final Thoughts:


Gramophone: Again, MDF wasn't the best material for the task. Luckily Pinchas found an eucalyptus trunk.

Having a better understanding of the robotic arm would have directed our design of the gramophone more accurately. Thanks again to Pinchas for the patience in helping us to understand the machine and adapting our design for it.

Electronics: The sensors' range was a lot smaller than we expected since humans turned out to be tricky targets for it. The total space for interaction was therefore smaller than we had hoped, but we're still proud of it.
A great solder saves a lot of time!
